When it comes to evaluating components in an operation, V-belts are often overlooked.
Instead of being thought of as a crucial component, they are often considered an accessory to the main machinery. But beyond this simple perception lies a truly critical component whose reliability directly affects the efficiency, longevity and cost-effectiveness of entire operations.
When chosen with intention and carefully maintained, V-belts become much more than mechanical links by enabling operational excellence.
The cost of complacency
With modern advancements, a well-designed V-belt drive can achieve efficiencies approaching 98 percent. In the real world, however – where misalignment, wear and poor tensioning are relatively common – that number can plummet by more than 20 percent.
These losses are not isolated to the V-belt but often appear as increased energy consumption, premature component failure and unplanned downtime impacting an entire operation.
The upside is that these inefficiencies are not inevitable. With thoughtful selection, modernized technology and disciplined maintenance, these issues can be dramatically reduced.
Choosing more than a replacement
Most V-belt maintenance is typically reactive: A failed belt is replaced with an identical one without much consideration for what caused the failure or whether a better alternative is available.
This habit can lock operations into a cycle of outdated configurations like over-belted systems with excessive components and unnecessary energy costs.
With V-belt technology information more available than ever before, as well as tools that help find optimal belt drives, the time for refining operations with new belt technology is easier than ever.
Optimized selection

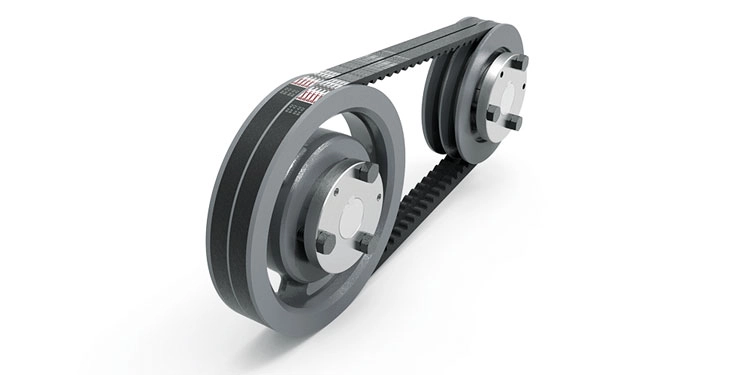

Modern V-belt design has evolved tremendously. Today’s belts are more torque-dense, durable and energy efficient than their predecessors.
As an example, a drive that once required two belts may now perform better with a single, optimized belt chosen specifically for the application.
And this is where tools like digital selection software are key. These platforms analyze input parameters and recommend drive configurations that reduce component count, improve service factor ratings and lower total system costs – while improving the overall site performance.
Innovation in action
Even with immense refinement in place, what qualities should you consider when looking to upgrade your existing V-belts?

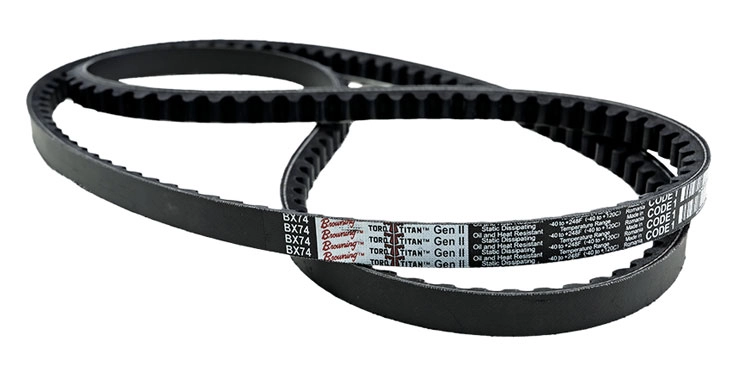

New materials such as EPDM rubber help with heat resistance at a much higher rating than previous iterations of V-Belts. Also, additional innovations like woven backings and materials integrated into the belts themselves ensure the new evolution of V-belts are made for the modern world.
Notched versus wrapped
The geometry of a V-belt plays a crucial role in its performance. Notched belts, with their cogged undersides and raw edges, offer several advantages over traditional wrapped belts – including:
■ Greater flexibility that reduces bending stress and internal heat
■ Improved engagement with sheave grooves to minimize slippage
■ Up to 40 percent more horsepower capacity in some cases
■ Cooler operation, extending belt life and reducing energy loss
According to the U.S. Department of Energy, notched belts are about 2 percent more efficient than their standard wrapped counterparts. While that margin may seem small, the savings become substantial when multiplied across hundreds of drives and thousands of operating hours.
Efficiency in sheave size & alignment
Efficiency goes beyond the belt – it extends to the entire drive system.
Sheave diameter has long been known to impact performance. Larger sheaves traditionally reduce belt bending, lower tension requirements and decrease bearing loads.
Still, with the advent of high-horsepower belt technologies, these advantages are now achievable with smaller sheaves. These advanced belts tolerate increased stress and tighter bending radii, enabling compact designs without sacrificing performance.
In many cases, downsizing sheaves results in a reduced system footprint, lower material costs and improved energy efficiency – while maintaining or even enhancing drive output.
Alignment is equally critical. Misalignment, whether parallel or angular, causes uneven belt wear, slippage and heat buildup. Even minor misalignments can result in efficiency loss and accelerated component degradation.
The silent effects of tension
Among all maintenance factors, tensioning is often overlooked for how impactful it is to an operation.
Under-tensioned belts slip, squeal and wear prematurely. Over-tensioned belts strain bearings and consume excess energy. The result in both cases is a significant loss in efficiency and a shortened lifespan.
Studies have shown that under-tensioning alone can lead to energy losses of up to 20 percent. When you consider this among all belts in an operation, the effect is staggering.
And while proper tensioning is essential during installation, tension can drop within minutes of startup as belts settle into their grooves. Without re-tensioning, even a well-aligned drive can quickly become inefficient.
One way to address this issue is with automatic spring-loaded motor bases. The intent of these bases is to maintain the correct tension in the V-belt as it wears away.
Still, due to the high-cost nature of these spring-loaded motor bases, operators generally shy away from their use.
The other way is to use a V-belt that, once properly tensioned, maintains that tension for the life of the V-belt. More recent advancements in V-belt technology allow for this kind of operation and can significantly reduce the maintenance needed to maintain belt drives.
Inspect what you expect
Even the best belt can’t perform on a worn sheave.
Over time, sheave grooves develop a “dished” profile that reduces belt contact and texture while increasing slippage. A wear gap of just 1/32 in. can cause efficiency losses of 5 percent or more to a single belt. As a theme, this applied over several belts adds up.
Routine inspection is key. Look for uneven wear, shiny belt sidewalls or black dust beneath the drive. All of these are indicators that some part of your drive may be struggling. Replace worn sheaves promptly and avoid the temptation to over-tension as a quick fix.
The impact of attention
In the end, the V-belt is much more than a simple component.
Such a simple item in theory reflects how operations approach reliability, efficiency and innovation. When a V-belt is treated as an afterthought, it invites inefficiencies into the operation.
The next generation of V-belts is exploring more ways to be a significant contributor to the success and efficiency of drives in all conditions. Higher horsepower ratings, improved materials and experimenting with designs all contribute to moving the future forward in V-belt technology.
By making sure your team is informed and aware of the innovation and solutions around them, you can ensure your operation keeps up.
